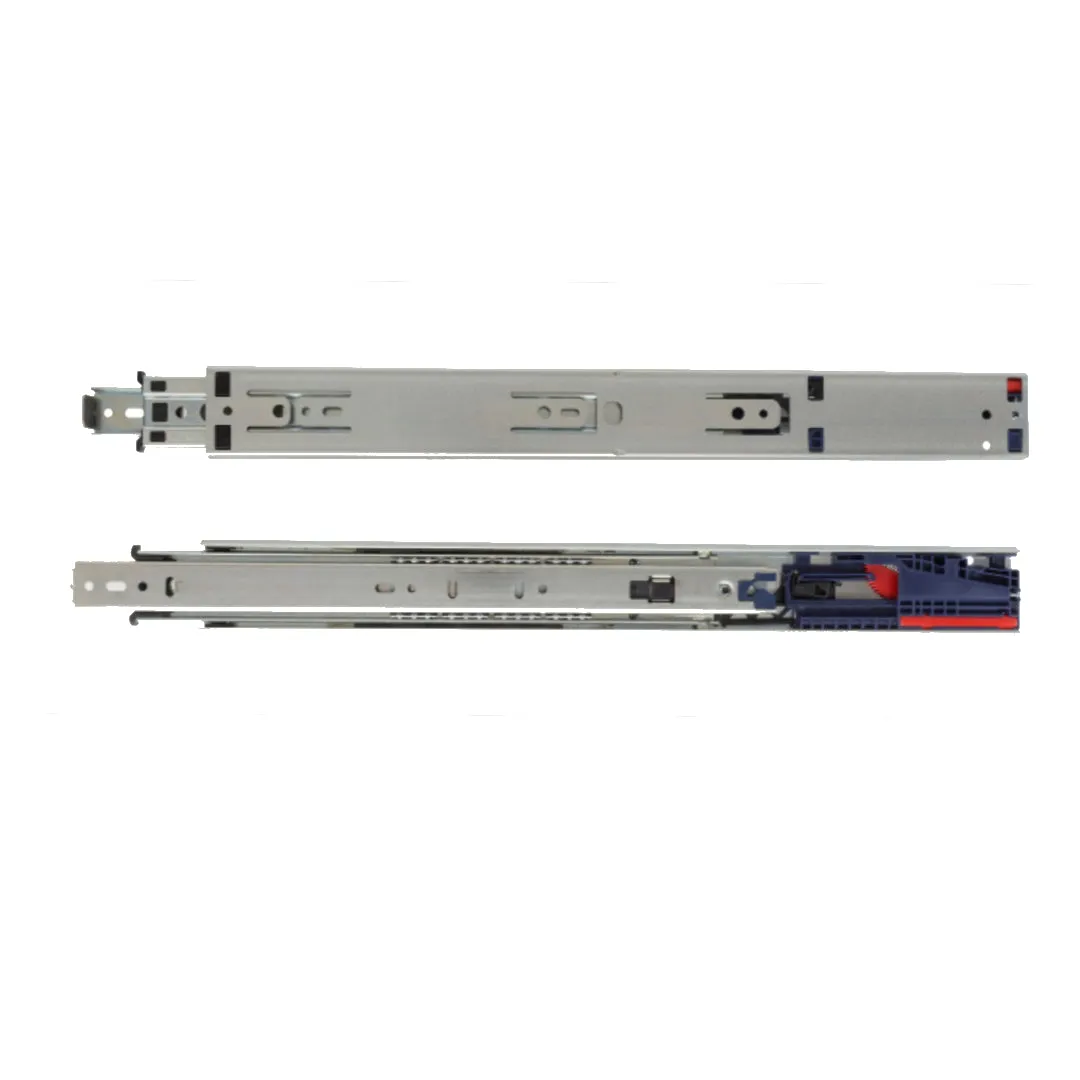

KV 8450FM 12" Soft-Close Full Extension Drawer Slides

Name: KV 8450FM 12" Soft-Close Full Extension Drawer Slides
SKU: 92440

$ 34.99

$ 0.00

Save: $

Title:

DefaultTitle

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Product Details

100 lb. class drawer slide with best-in-class soft-close module features patented Force Management™ Technology that delivers the lowest opening pull force while ensuring effective dampening closure that eliminates drawer slamming. Full extension drawer slide has a traditional and 32mm hole patterns that support industry standards. Features an unhanded design with lever disconnect for easy drawer removal.

Slide Class	Medium Duty
Slide Type	Ball Bearing
Load Class	100 lb.
Mounting	Side
Slide Width	.50"/12.7mm
Slide Clearance	.50" .03" - 0"
Slide Height	1.79"/45.5mm
Slide Extension	Full
Open Close Features	Soft-Close
Material	Steel
Recommended Max Drawer Width	24"
Disconnect	Lever Release
Bearing Type	Steel Ball Bearing
