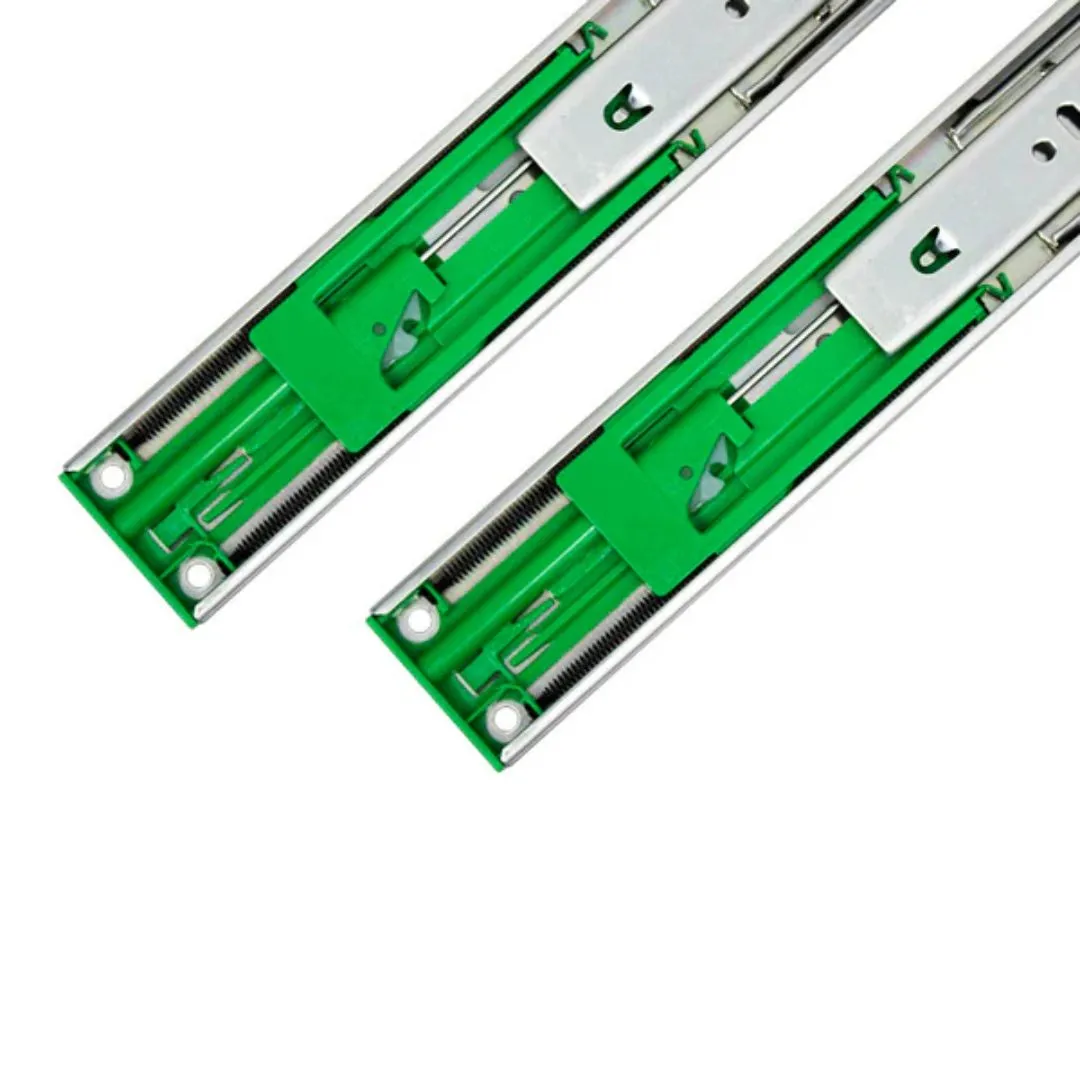

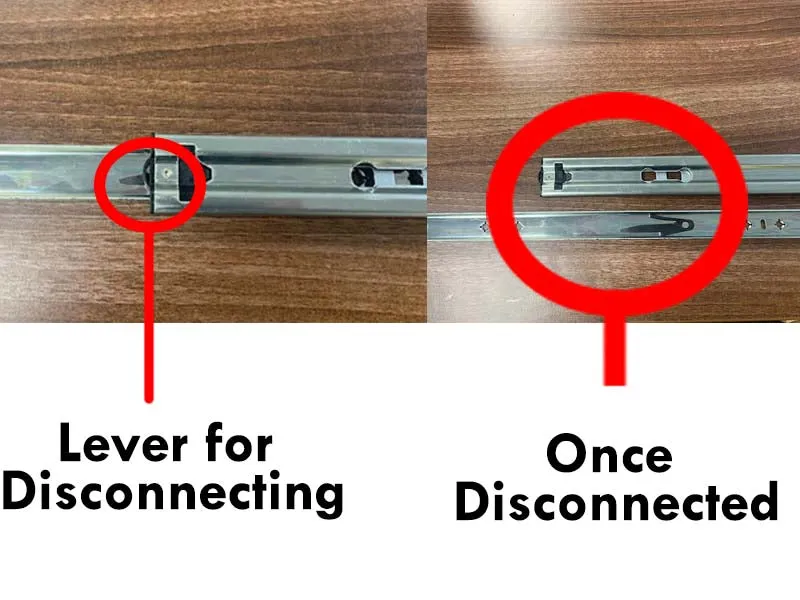

Our IntAfit ball bearing soft close slide with 45kg load rating, 45mm profile height and 350mm closed length with a further 350mm extension (700mm open length). Classified as a medium duty drawer slide in our range with a quick release lever for installation and built in soft close mechanism to prevent drawers from slamming shut.
Features
- Type: Soft Close
- Quick Release: Yes

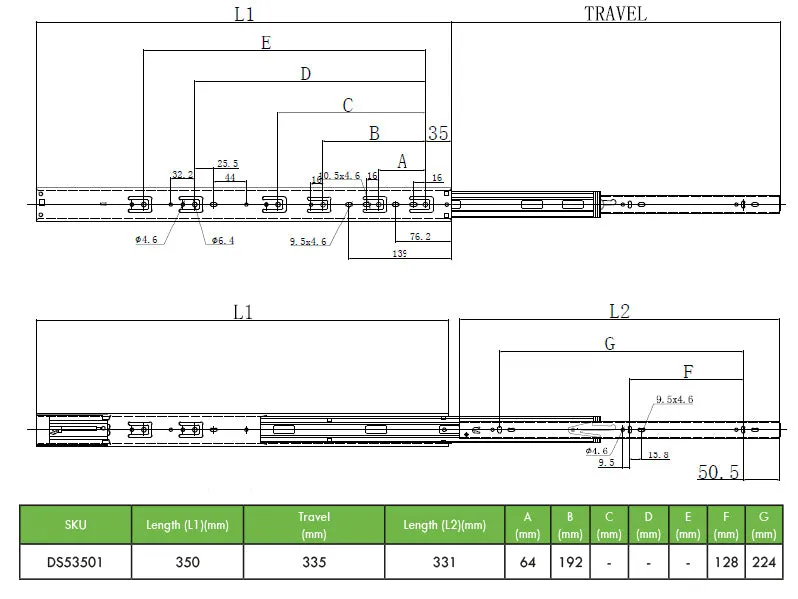

- Closed Length: 350mm
- Open Length: 700mm

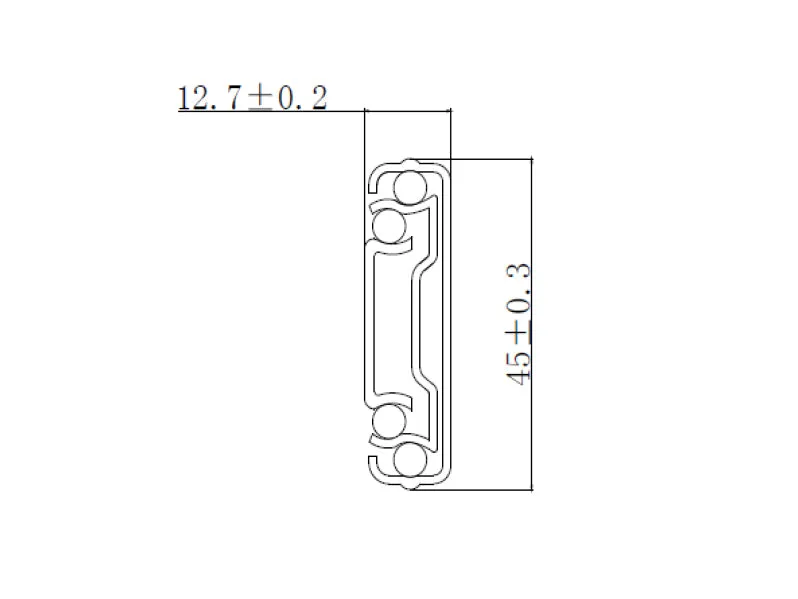

- Profile Height: 45mm
- Profile Width: 12.7mm
- Load Rating: 45kg (based on 450mm length)
- Range Sizes: 350 - 550mm
- Finish: Zinc Plated
- Fixing Method: Screw or Rivet

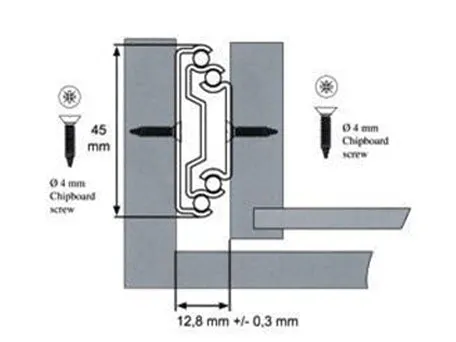

- Installation: Side Mounted (Base mounting these runners is not recommended)
Applications
- Office Furniture
- Bedroom Furniture
- Tool box storage units
- Vehicle conversions
- Caravans
- Motorhomes
- Computer server storage
- Shop fitting
