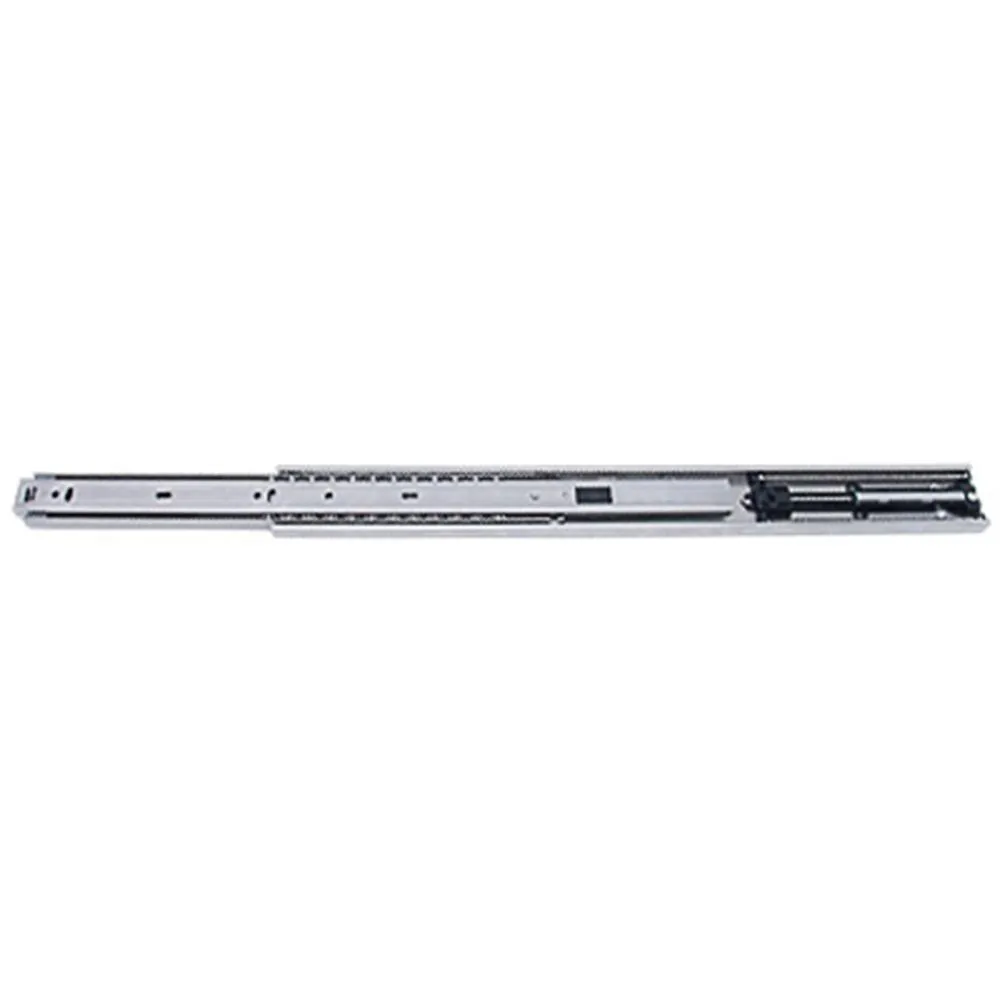

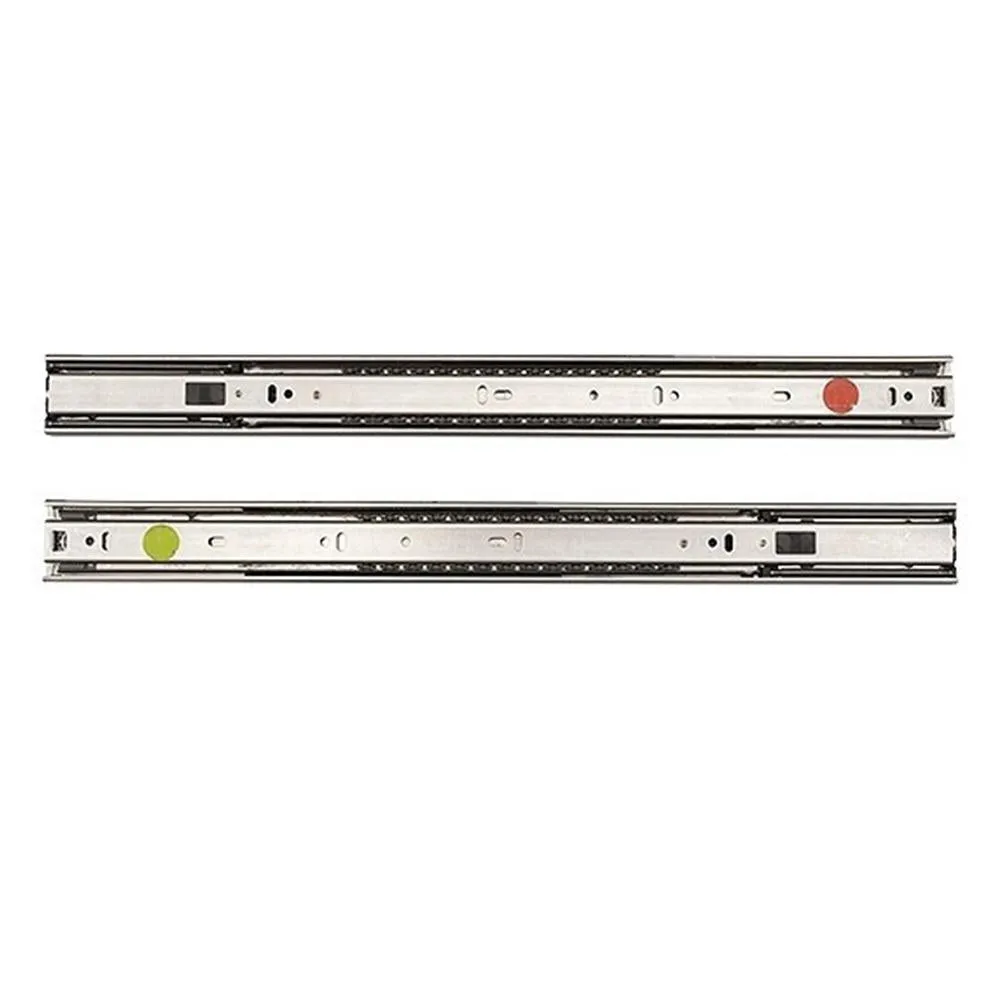

SUGATSUNE's soft close full-extension drawer slides are used for a variety of cabinetry applications in corrosive environments, from outdoor kitchens to industrial equipment. The track and bearings are constructed of #304 stainless steel which provides a smooth operation. Ball bearing slide linear rails provides smooth, quiet operation for your storage spaces and compartments with dependability and quality motion.

• 304 stainless steel
• Weight capacity 68 lbs.

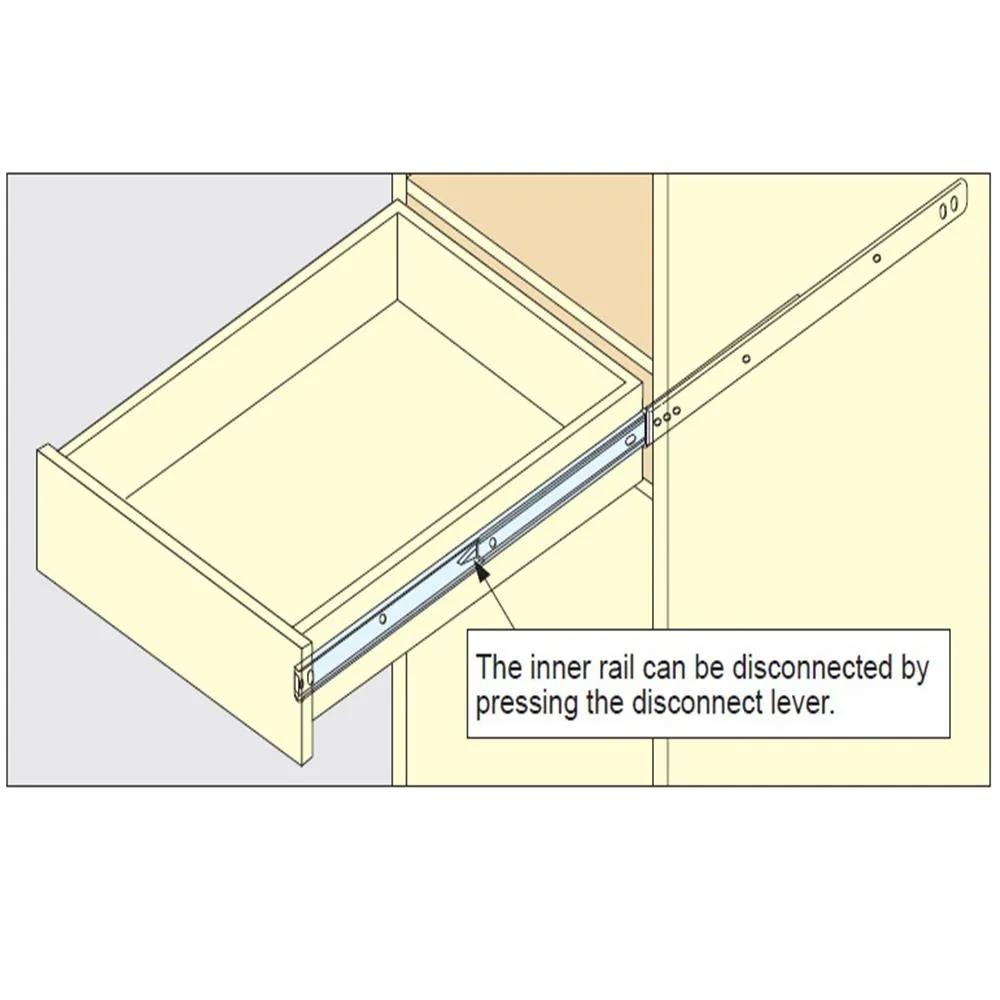

• Soft-close with quick disconnect
• Hardware fasteners not included due to application capacity and variances

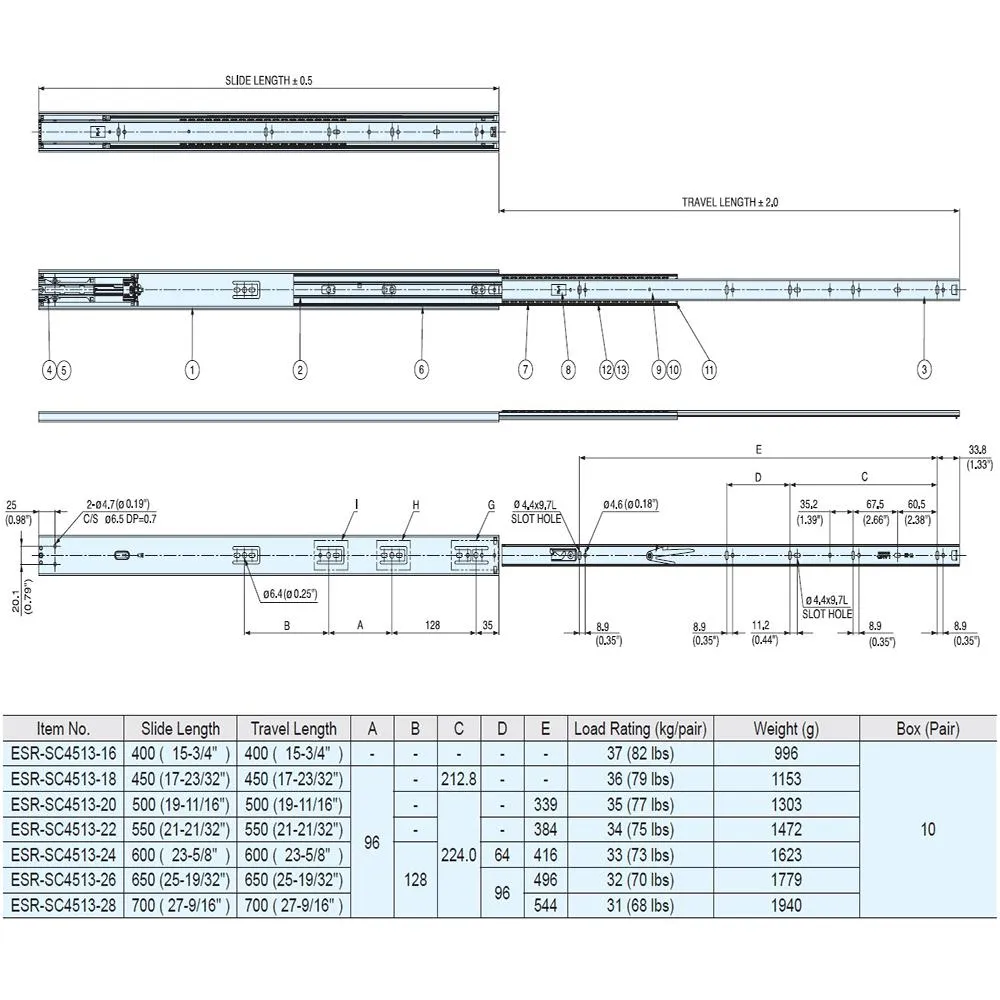

• Actual slide spec dimension 700 mm (27-9/16 in.) L x 12.7 mm (1/2 in.) W x 44.7 mm (1-3/4 in.) H
• 1/2 in. side clearance per side

Features

Item Weight	5
Features	Soft Close
Slide System	Full Extension
Mount Type	Side Mount
Returnable	180-Day
Package Quantity	2
Builders Hardware Product Type	Drawer Slides
Material	Stainless Steel
Weight load per set (lb.)	68
Drawer Slide Type	Ball Bearing
Finish Family	Stainless Steel
Product Height (in.)	1.75
Maximum Expandable Length (in.)	27.5625
Slide Length (In.)	28
Product Width (in.)	.5
Manufacturer Warranty	One Year
